LED Basics Explained: Light Emitting Diodes for Beginners

LEDs are everywhere—on robots, circuit kits, control panels, and just about every modern electronic device. For beginners, they’re also one of the most rewarding parts to learn with because they give instant visual feedback. In this guide to LED basics, we’ll break down how light emitting diodes work, why direction and resistors matter, and how you can confidently use LEDs in simple, beginner-friendly circuits without burning anything out.

If you’re building your skills for more projects, you can also check out our project ideas.

What is an LED?

An LED is a Light Emitting Diode. It’s a special kind of diode (a one-way electronic “gate”) that produces light when current flows through it in the correct direction.

Two key ideas:

It only works one way (direction matters).
It needs current limiting (it can burn out if you connect it directly to a battery without a resistor).

How an LED works (simple version)

Inside an LED are two types of semiconductor material. When you apply voltage in the correct direction, electrons can cross a “junction” and release energy. In an LED, that released energy is emitted as photons (light).

Different LED colors use different materials, which is why red, green, and blue LEDs don’t all behave exactly the same.

LED polarity: which leg goes where?

Because an LED is a diode, it has polarity:

Anode (+) = positive side
Cathode (–) = negative side

How to identify the legs

Most standard 3mm/5mm LEDs have:

Long leg = Anode (+)
Short leg = Cathode (–)
Flat edge on the LED body = Cathode (–)

Breadboard tip: If the LED doesn’t light up, flip it around first. Polarity is the most common beginner mistake.

Why LEDs need a resistor

LEDs are efficient, but they’re not “self-limiting.” Once an LED turns on, it can try to draw more and more current. Too much current causes it to overheat and fail.

That’s why you almost always add a series resistor to limit current. If you’re new to resistors and wiring, this parts guide is a great companion:

Basic Electronics Components for Beginners

Choosing the right resistor (quick, beginner-safe method)

For the LEDs explained basics, you don’t need to overcomplicate it. Here’s a simple and safe starting point:

Common safe resistor values

220Ω (bright, common with 5V systems)
330Ω (still bright, a little safer/less current)
1kΩ (dimmer, very safe for testing)

Quick rule of thumb

If you’re using 5V, start with 330Ω.
If you’re using 3V (coin cell), you might use no resistor in some cases, but it’s still smart to use a small resistor if possible.
If you’re unsure, use 1kΩ for testing.

Simple formula (optional, but useful)

If you want to calculate it:

R = (Vsource – VLED) / I

Typical LED values:

VLED: ~2.0V (red), ~3.0V (blue/white)
I (current): 0.01A to 0.02A (10–20mA)

A basic LED circuit you can build today

Here’s the simplest LED circuit:

Battery/5V (+) → Resistor → LED (anode) → LED (cathode) → Battery/5V (–)

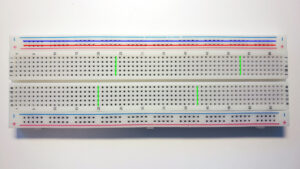

Breadboard checklist

Resistor in series with LED (not parallel)
Long leg toward positive
Short leg toward ground/negative
Solid connections (no “almost” contacts)

Why some LEDs look brighter than others

Brightness depends on:

Current (more current usually = brighter, up to safe limits)
Color/type (some colors are naturally brighter)
Diffused vs clear lens (diffused spreads light, clear can look intense head-on)
Viewing angle (some LEDs are narrow-beam)

Beginner tip: If your LED is painfully bright, increase the resistor value.
